Production of welded air ducts according to the client's requirements. We produce welded ducts SKII and SKIII. We specialize in the production of welded stainless steel pipe for use in high temperature or food industry.

Our company manufactures welded piping for use in industrial exhaust and air filtration applications. We prepare design, construction and manufacturing documentation for all piping components for our clients.

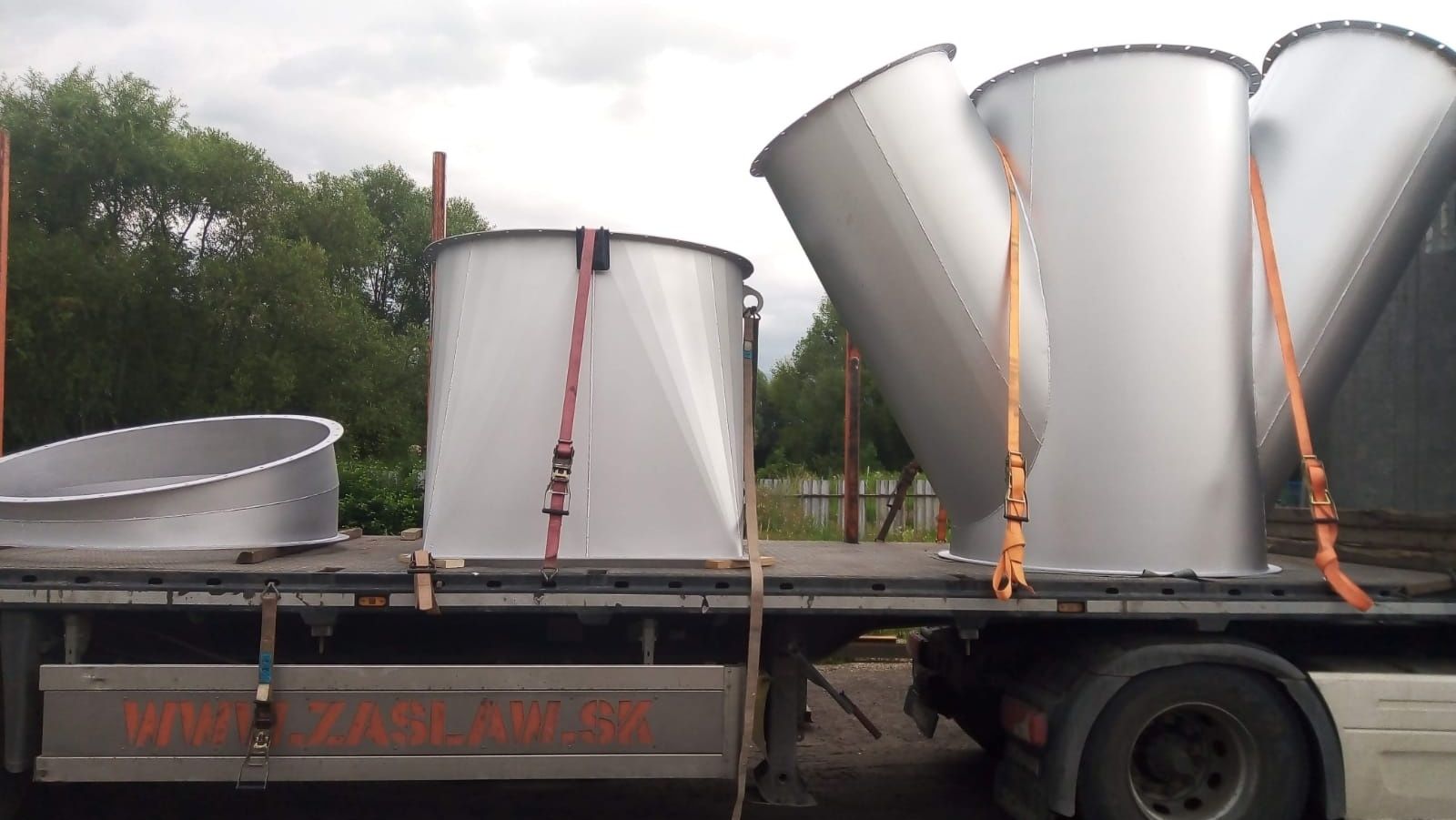

From special components we produce double-walled elbows and branch pipes. These components are used in special applications for extraction of highly abrasive dust. We specialize in the manufacture of welded piping and stainless steel material for use in high temperature or food and pharmaceutical applications.

We have determined the pressure resistance for welded piping by software modelling with a safety factor of 1.5 and as a manufacturer we guarantee the following values:

• The pressure resistance of the product without permanent damage for a material thickness t = 1.5 mm is 46 350 Pa.
• The pressure resistance of the product without permanent damage for a material thickness t= 2.0 mm is 57 960 Pa
• The pressure resistance of the product without permanent damage for material thickness t= 3,0 mm is 62 315 Pa

Our exhaust duct components can be used in explosive dust extraction applications where a minimum pressure resistance of the duct is specified in case of an explosion. The piping with the pressure resistance requirement is usually located between the filtering device and the check valve, which prevents the pressure wave from propagating into the exhaust piping to areas where site personnel may be present.
